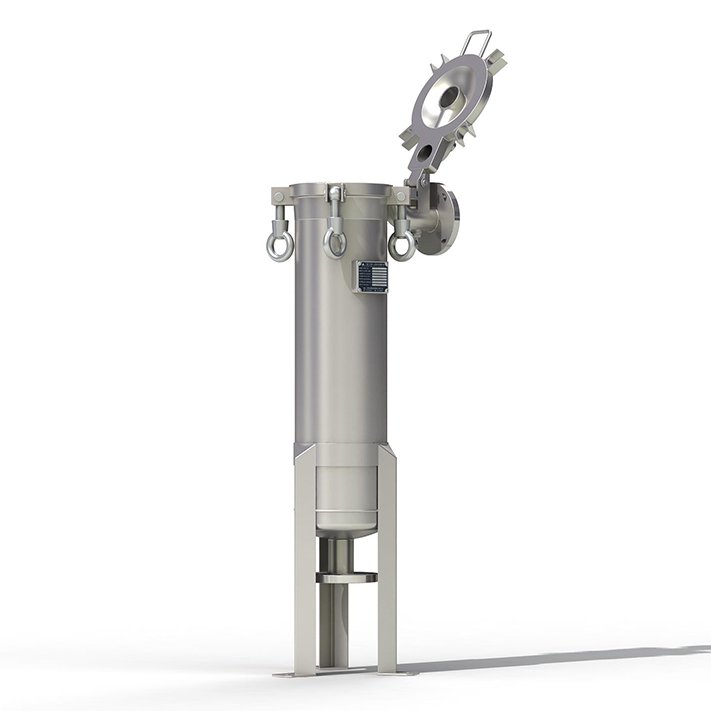

SSP CS series Single Bag Filter Housings are used in low flow applications, where high temperatures and pressures are not required. They have a durable stainless steel construction, and utilize eye bolts to close the housing for high pressure operation. SP standard CS single bag filter housings have all parts and components of standard models. All SP CT housings fit size #2 filter bags.
Online
Robust Design with 4 point covers
Easy Opening & Closing. Cover has integrated handle in lid and is attached to a swing bolt
Easy to Clean
Housing will accept either standard or pleated bags
The height of supports can be flexibly adjusted;
Large Inventory available
No Bypass – bag sealing is guaranteed with our proprietary bag clamping mechanism
Polishing and shot blasting are available for selection regarding surface treatment. Carbon steel filters are subject to double treatment with passivation and powder coating

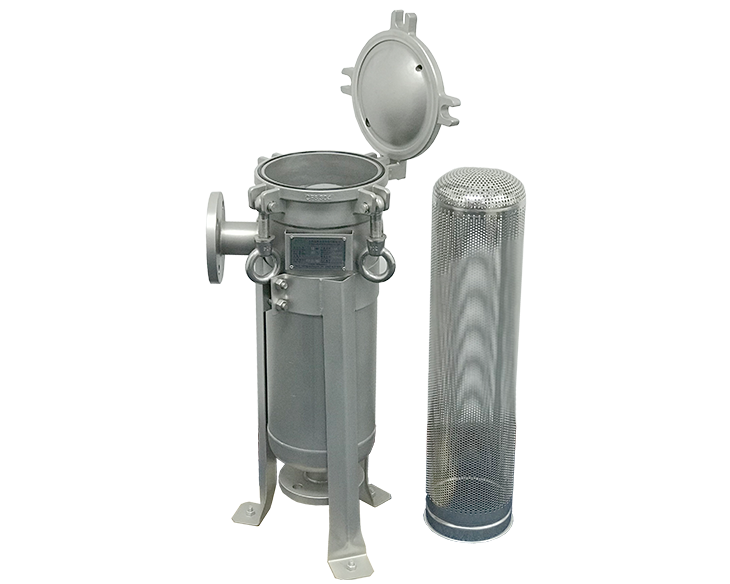

Each filter is provided with a stainless steel mesh basket to hold the filter bag.
ASME design can be provided.
Automobile, copper foil, electronic industry, fine chemicals, papermaking, food medicine, coatings, petrochemical various micro-content impurities liquids
Duplex Singl Bag Filter Housing

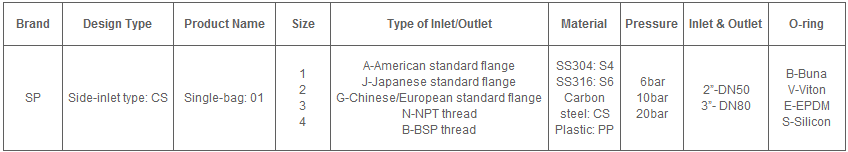

Example: SP CS 01 01 A S4 10 1 B; SP-Brand name, CS-side in type, 01-one bag, 01-size#01, A-ANSI-Flange, S4-SS304, 10-10bar, 1-1”, B-Buna.
