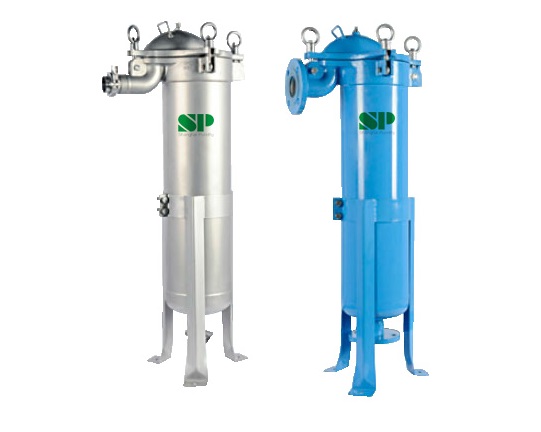

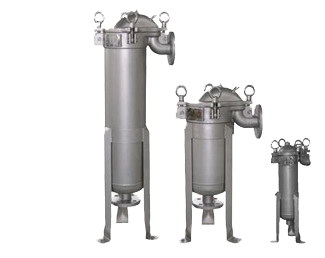

SP CT Single Bag Filter Housings are used in low flow applications, where high temperatures and pressures are required. They have a durable stainless steel construction, and have a goose-neck inlet for laminar flow. SP standard CT single bag filter housings have all parts and components of standard models. All SP CT housings fit size #2 filter bags.
Online
Robust Design with 4 point cover
Easy installation and operation;
Top Inlet Design – minimizes unfiltered liquid and makes bag changes, fast and easy
Housing will accept either standard or pleated bags
The height of supports can be flexibly adjusted; Large Inventory available
No Bypass Cover – designed to seal directly on filter bag ring, eliminating possible bypassing
Polishing and shot blasting are available for selection regarding surface treatment. Carbon steel filters are subject to double treatment with passivation and powder coating
Each filter is provided with a stainless steel mesh basket to hold the filter bag.
ASME design can be provided.
Automobile, copper foil, electronic industry, fine chemicals, papermaking, food medicine, coatings, petrochemical various micro-content impurities liquids

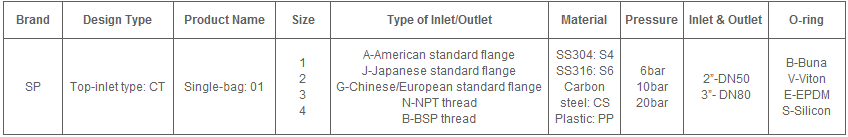

Example SP CT 01 01 A S4 10 1 B; SP-Brand name, CT-top in type, 01-one bag, 01-size#01, A-ANSI-Flange, S4-SS304, 10-10bar, 1-1”, B-Buna;
