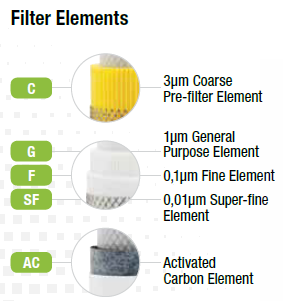

CNG flters remove all types of solid and liquid contaminants in stages — large amounts of condensate and coarse contamination particles such as rust, abrasion particles, oil droplets, and dust in the frst stages; fne oil mist and fne dust particles in subsequent stages. Compressed gas flters containing activated carbon also remove oil and oil vapour.
Online
CUSTOM MODELS
Larger Flows / Higher Pressures
Stainless Steel
Vacuum Applications
Activated Carbon Tower
Stainless Steel Internal Parts
Dryers
Compressors
Storage Cascades
Dispensers
Pressure | 260 psig / 18 barg |
Volume Flow Range | 1250 to 24300 scfm – 2100 to 41,280 Nm3/h |
Operating Temps | 32-176°F (248°F elements available) |
Port Size | 2" to 12" NPT, class 150 Flange |

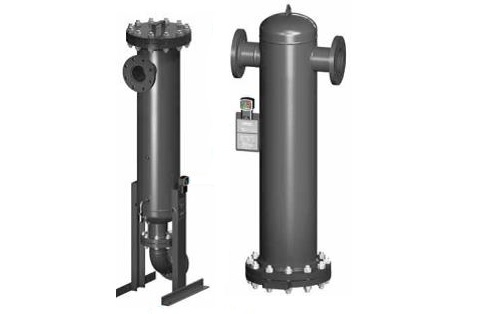

Standard Model | Carbon Steel Construction, Stainless Steel Internals, Inline (T), or Free Standing (Z) |

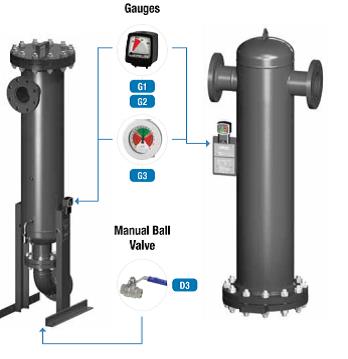

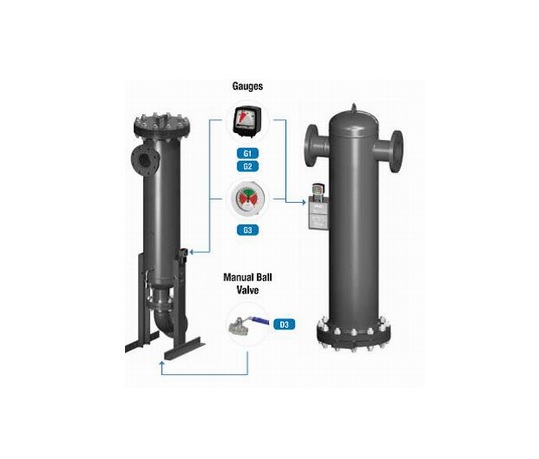

Accessories | Differential Pressure Gauge, Manual Drain |
