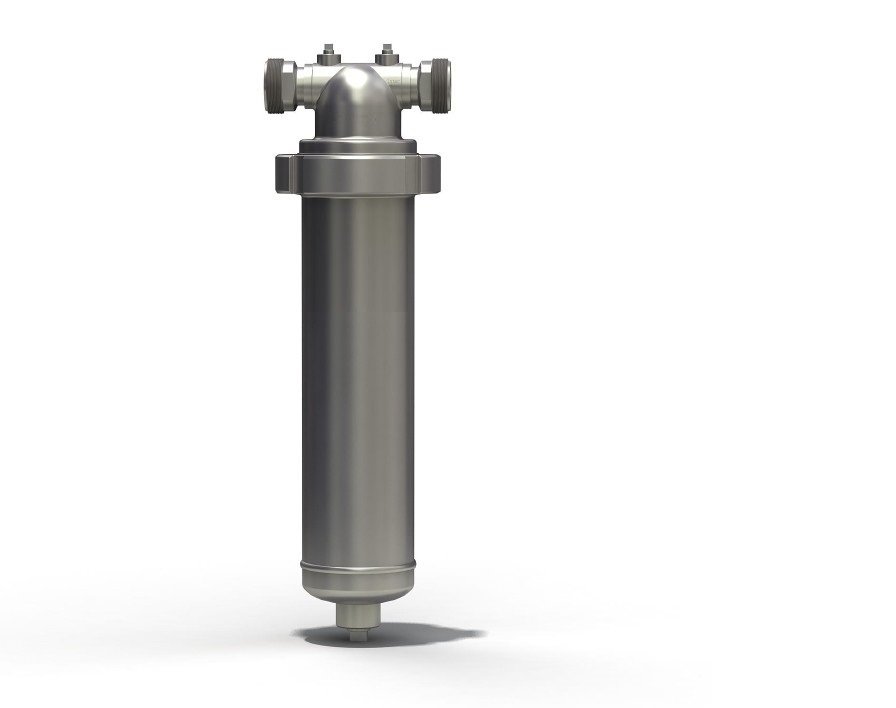

The SPC-II series single-cartridge filter housing comprises of three parts, i.e. a silica sol cast filter head, a drum and a filter element. The filter features convenient disassembly for easy maintenance; it is suitable with 10"-20" filter element, including filter element made of melt-blown material or glass fiber. The filter has NPT3/4" inlet and outlet provided on the top.
Online

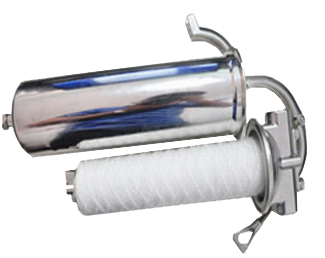

The filter element can be replaced without disassembling the pipe.
It can be easily disassembled and features low maintenance cost.
The filter is of a proper cast structure, and thus consumes low cost.
Chemical, Oil&Gas, Water treatment, Machining, etc,.
| Housing material: | WCB, SS304, SS316 |
| Filter element: | PP melt-blown cartridge, or PP string wound cartridge |
| O-ring: | NBR (standard), orVITION(option) |
| Filter precision: | 1~100μm |
| Temperature: | 80℃ |
| Pressure: | 1.6Mpa under normal temperature |
| Flow rate: | 5T/H (maximum) – depending on the precision and filter element |
